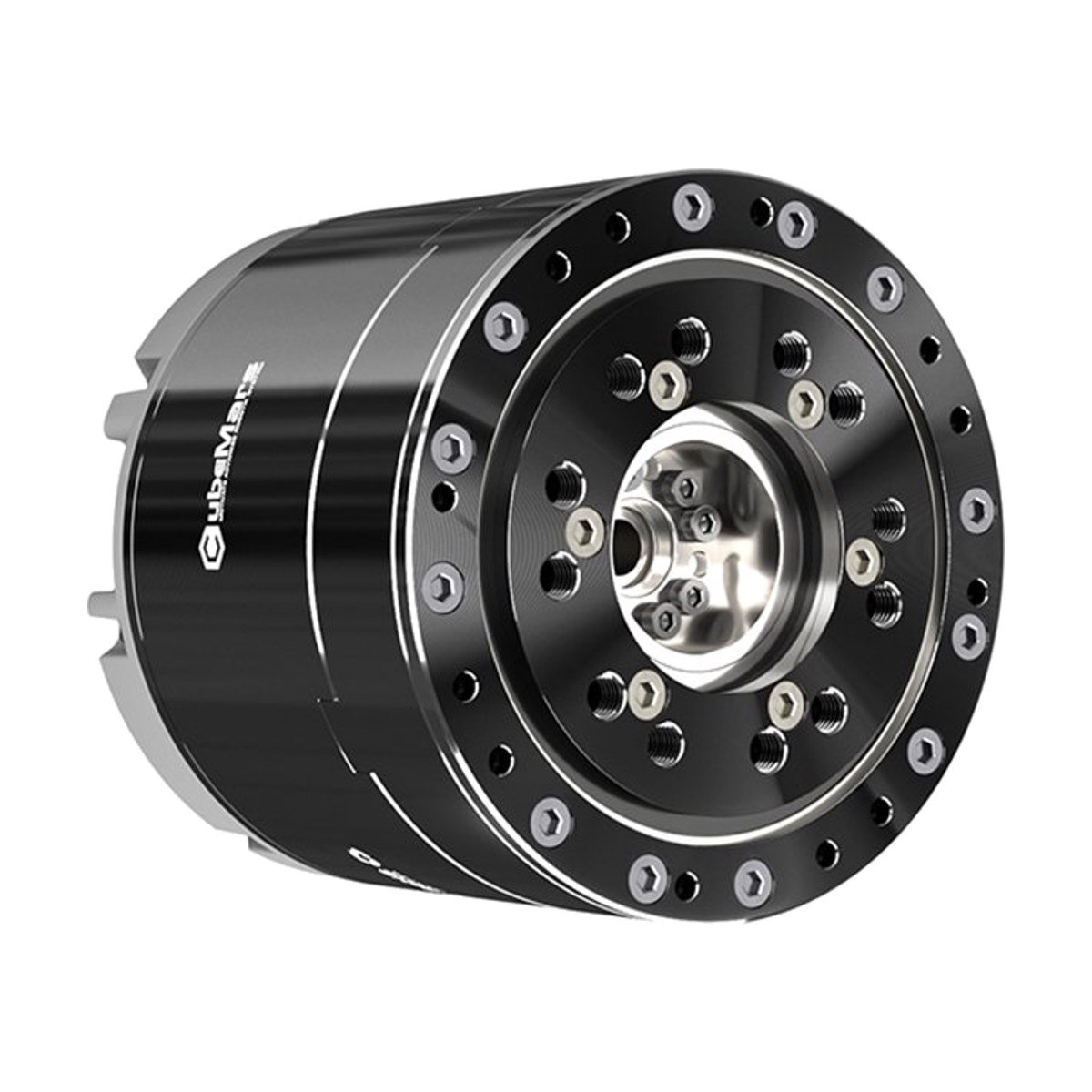

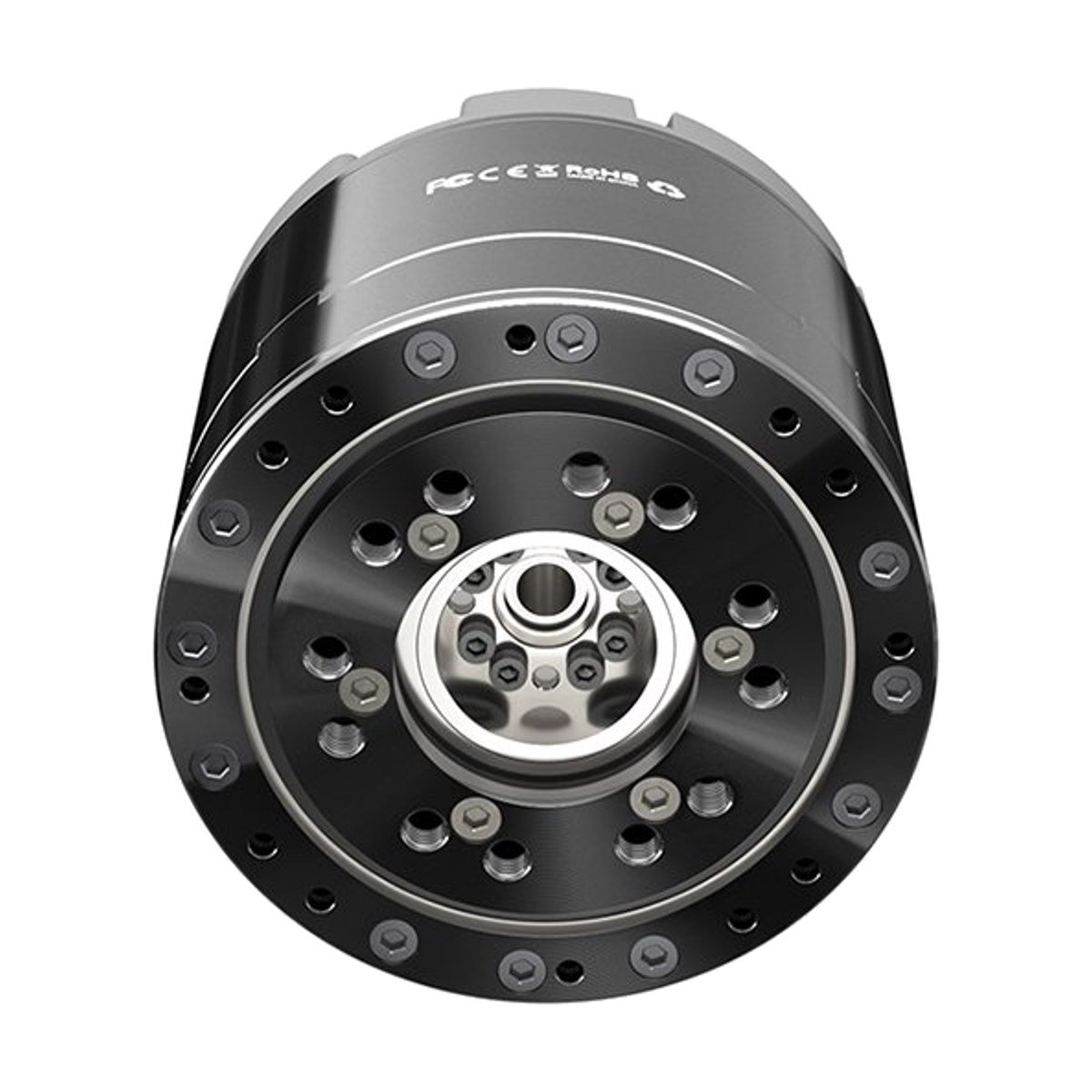

CubeMars AKH70-48 Hollow-Shaft Joint Actuator

CubeMars·AKH70-48 V1.0 KV41·RJT-040

CubeMars AKH70-48 Hollow-Shaft Joint Actuator

$768.90

Optimized for robot joints, the AKH70-48 KV41 Actuator offers high torque and a large hollow shaft for easy wiring. Ideal for exoskeletons and quadruped robots.

Freight: Quoted after order
Minimum order: 1 unit
In the box: Motor, gearing and driver included

Need volume pricing or a custom configuration? Request a quote →

222 N·m

Torque (peak / max)

74 N·m

Torque (rated)

Gear ratio

Communication

Specifications

Performance

Torque (peak / max): 222 N·m
Torque (rated): 74 N·m
Output speed: 28 rpm
Motion: Continuous rotary

Mechanical

Gear ratio: 48:1
Weight: 1.396 kg

Electrical

Supply voltage: 48 V
KV: 41 rpm/V

Interface

Communication: CAN

Specifications and photos are the maker's published data. Datasheets are available on request.

Made by

CubeMars

33 products

Manufacturer

Typical applications

Legged and humanoid robots
Robot arms and cobots
Exoskeletons
Research and education platforms

Choosing the right one

Use peak torque for dynamic moves and rated torque for sustained load; keep continuous load under the rated value.
Low ratios (about 6:1 to 10:1, quasi-direct drive) are backdrivable and suit legged robots; high ratios (30:1 and up) suit arms that need stiffness.
Check bus voltage (24 V or 48 V) and communication (CAN or CAN FD, EtherCAT, RS485) against your controller.
A dual encoder reports absolute output position at power-up, so the joint needs no homing.
Compare torque density (N·m per kg) when weight matters.

About this product

Optimized for robot joints, the AKH70-48 KV41 Actuator offers high torque and a large hollow shaft for easy wiring. Ideal for exoskeletons and quadruped robots.

Series: AKH hollow-shaft
Factory model: AKH70-48 V1.0 KV41
Made by CubeMars
