CubeMars·RI30 KV260·RMT-026

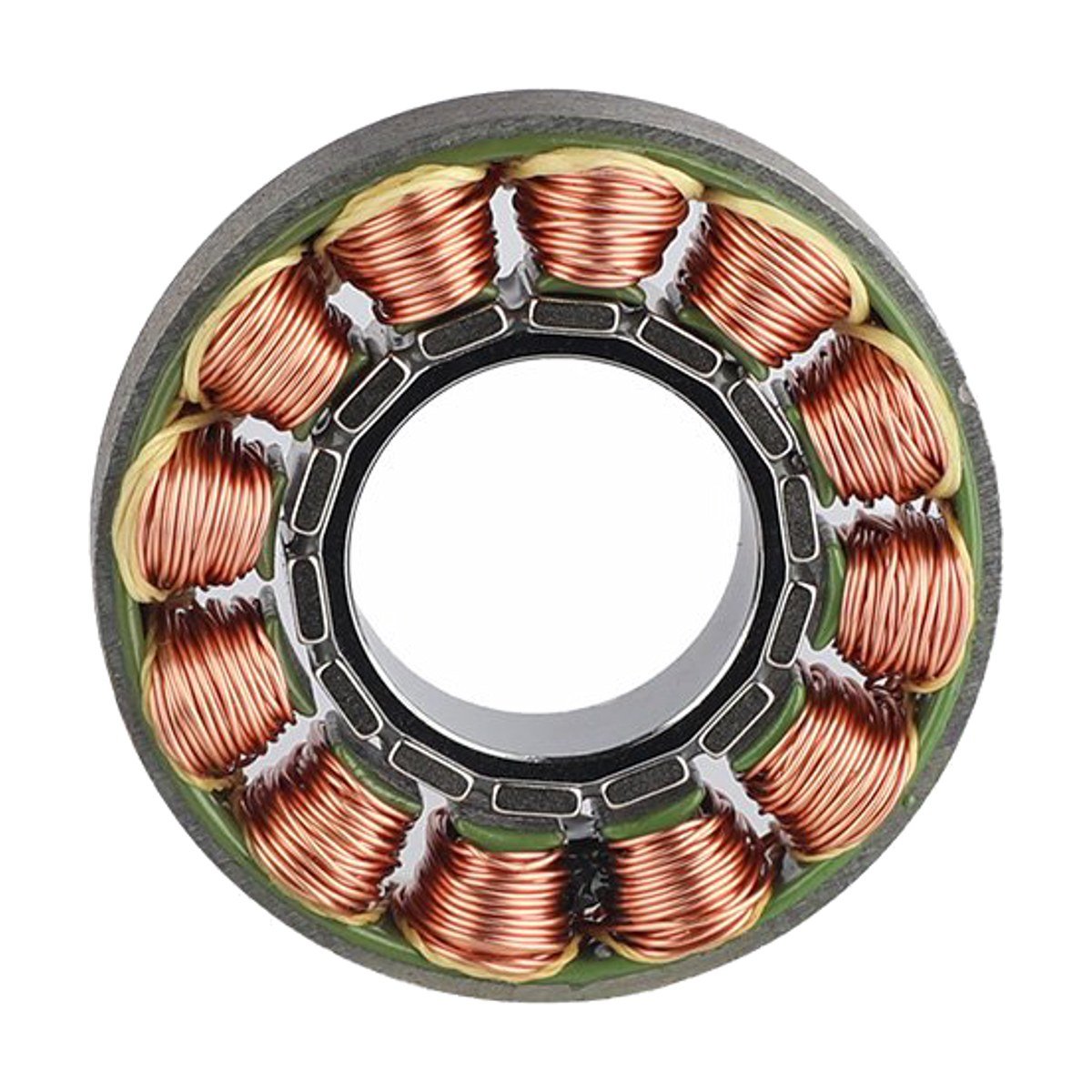

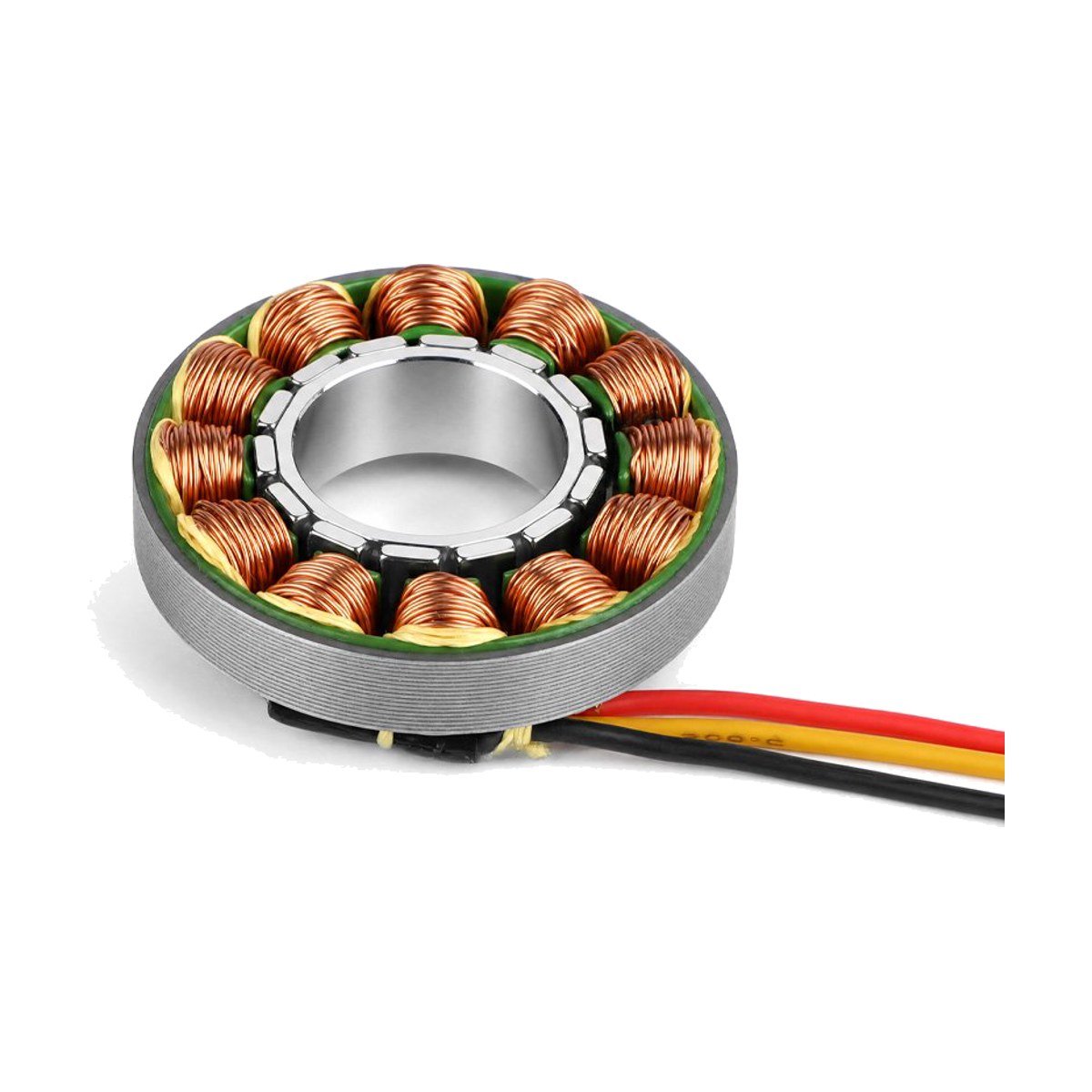

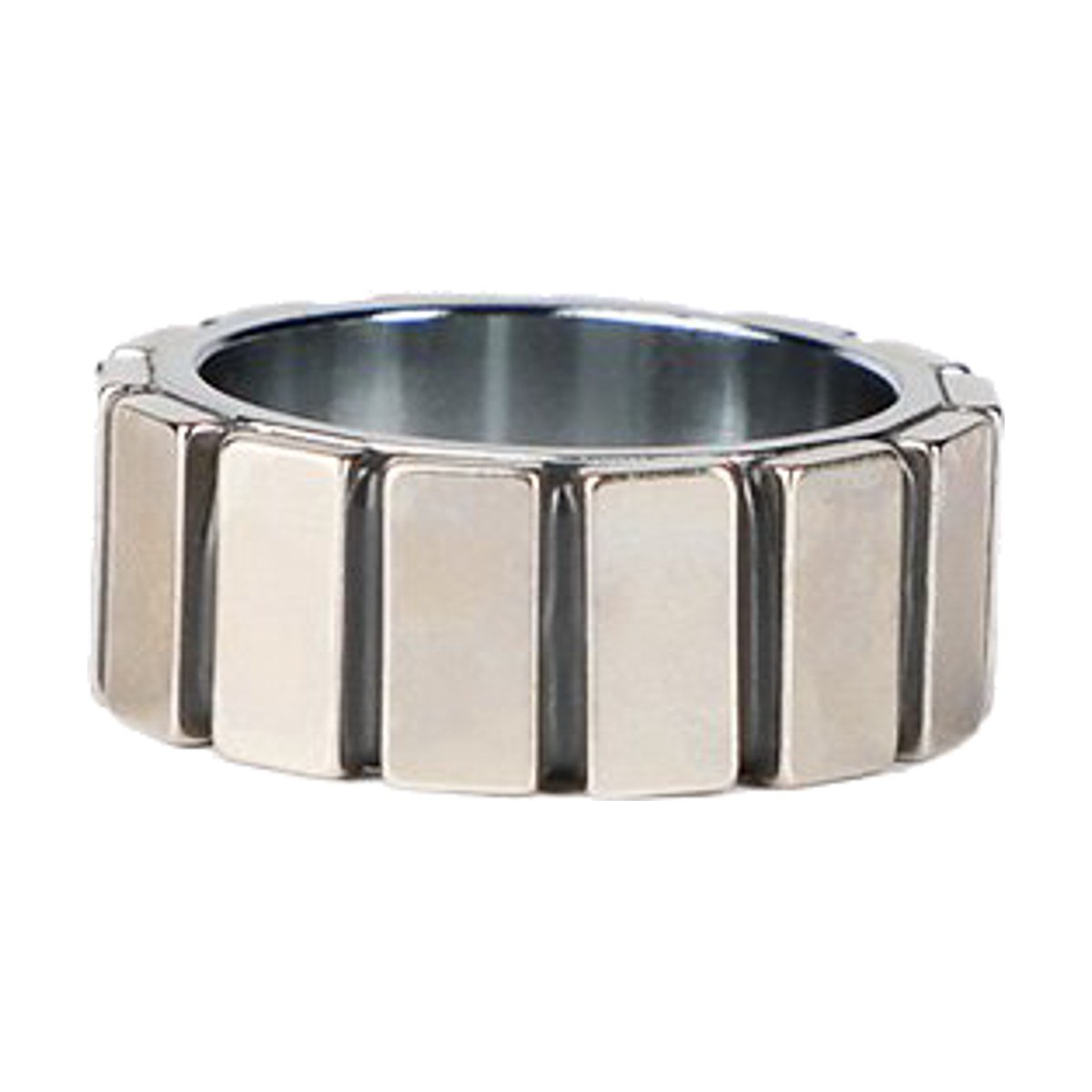

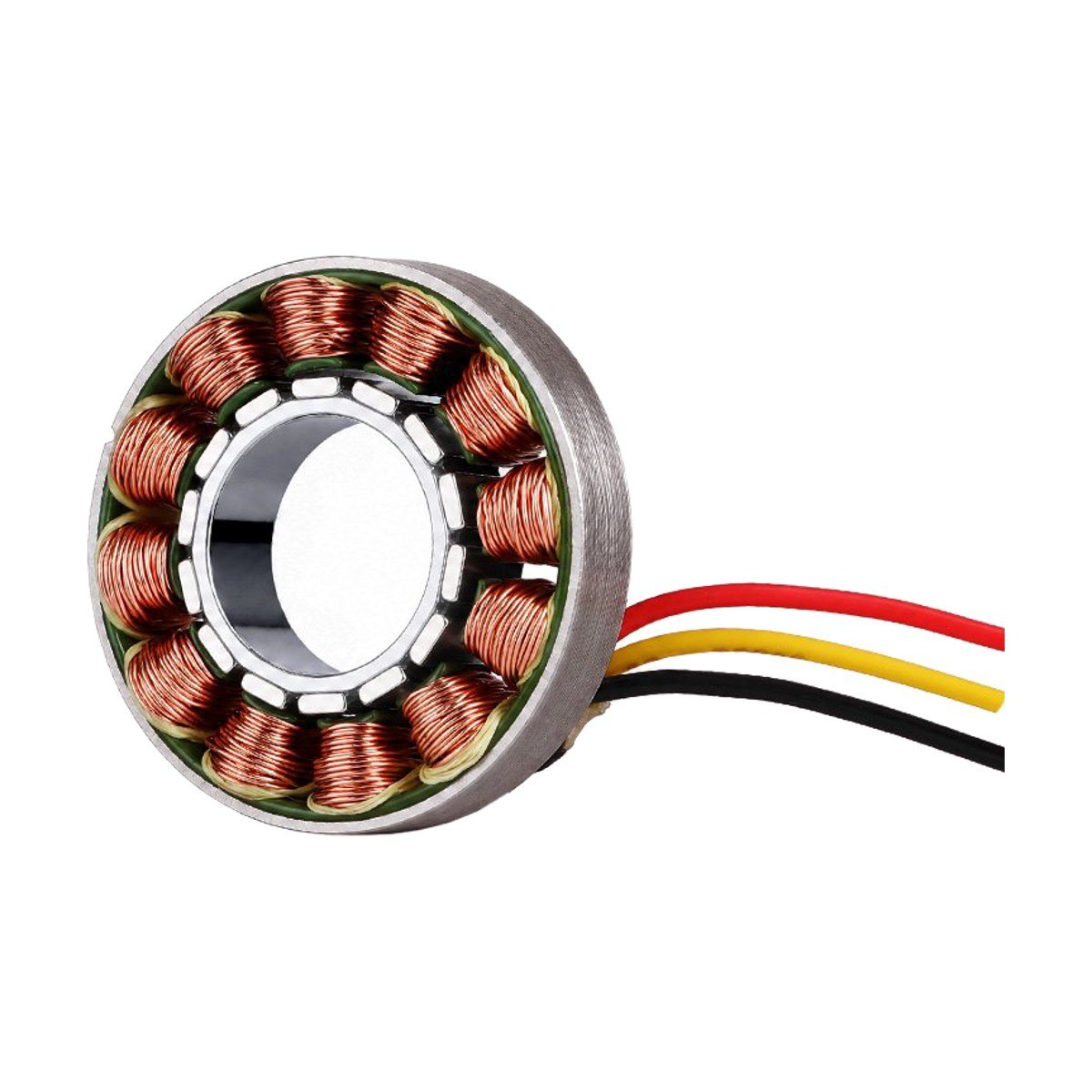

CubeMars RI30 Frameless Torque Motor

$57.90

CubeMars Frameless Torque Motor RI30 KV260 features:1、Miniature frameless inner rotor motor design;2、230mNm peak torque output in a compact structure;3、Φ17mm large hollow shaft design for flexible cable routing and system integration;4、Low cogging torque for smooth and precise motion control.

Freight: Quoted after order
Minimum order: 1 unit
In the box: Motor only

Need volume pricing or a custom configuration? Request a quote →

0.23 N·m

Torque (peak / max)

4,110 rpm

Output speed

0.04 kg

Weight

Specifications

Performance

Torque (peak / max): 0.23 N·m
Torque (rated): 0.076 N·m
Output speed: 4,110 rpm
Motion: Continuous rotary

Mechanical

Weight: 0.04 kg

Electrical

KV: 260 rpm/V

Specifications and photos are the maker's published data. Datasheets are available on request.

Made by

CubeMars

33 products

Manufacturer

Typical applications

Custom joints and actuators
Camera gimbals and stabilizers
Direct-drive axes
Pan-tilt heads

Choosing the right one

Frameless motors need your own housing, bearings, encoder and driver.
KV (rpm per volt) sets speed per volt; lower KV gives more torque per amp.
Inrunners leave a hollow center for cables and shafts; outrunners give more torque for their diameter.
