The entirely redesigned RO Series-RO80，Unveling A New Icon,High Adaptability,Large Hollow
- Series: RO frameless outrunner
- Factory model: RO80 KV105 Lite Frameless Torque Motor
- Made by CubeMars

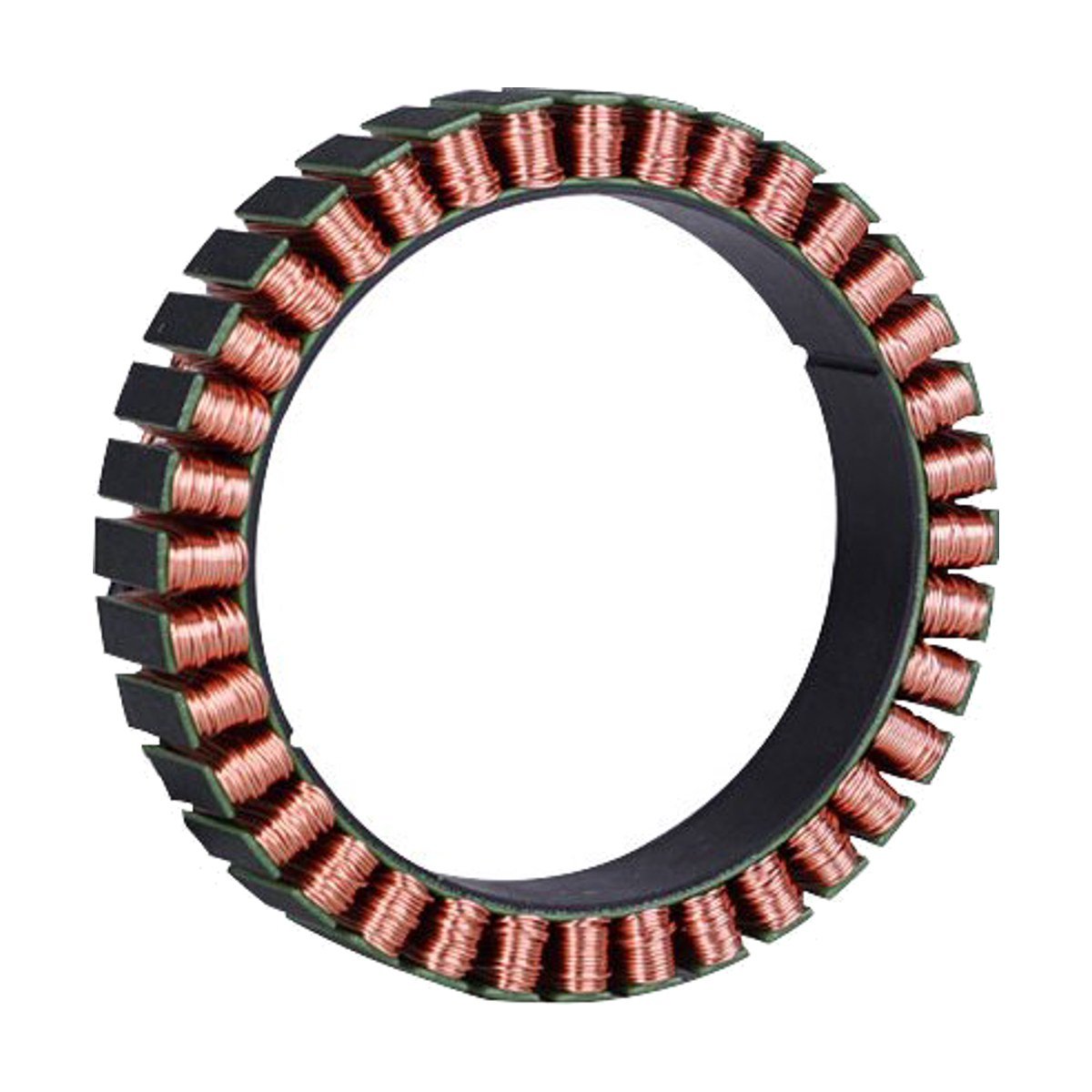

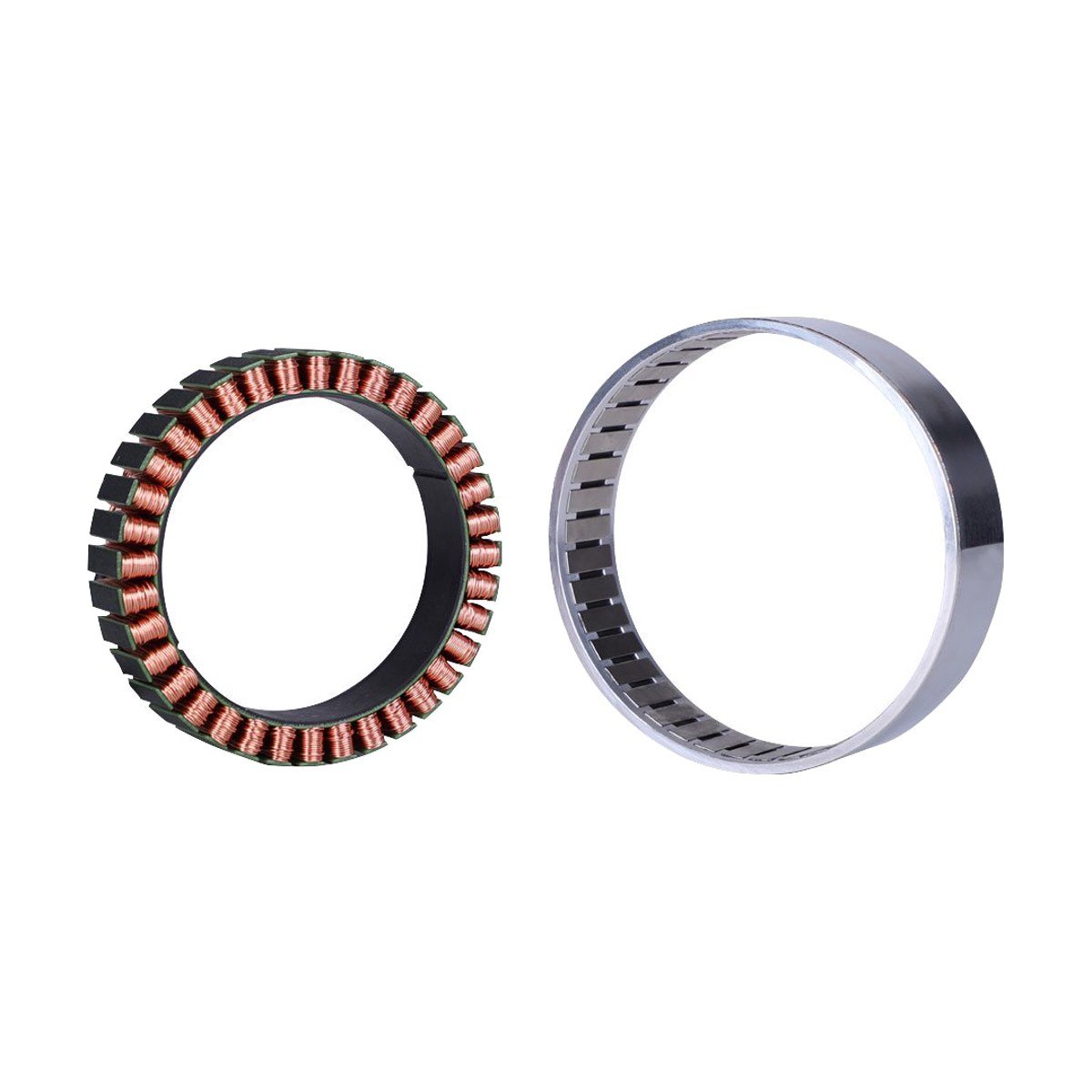

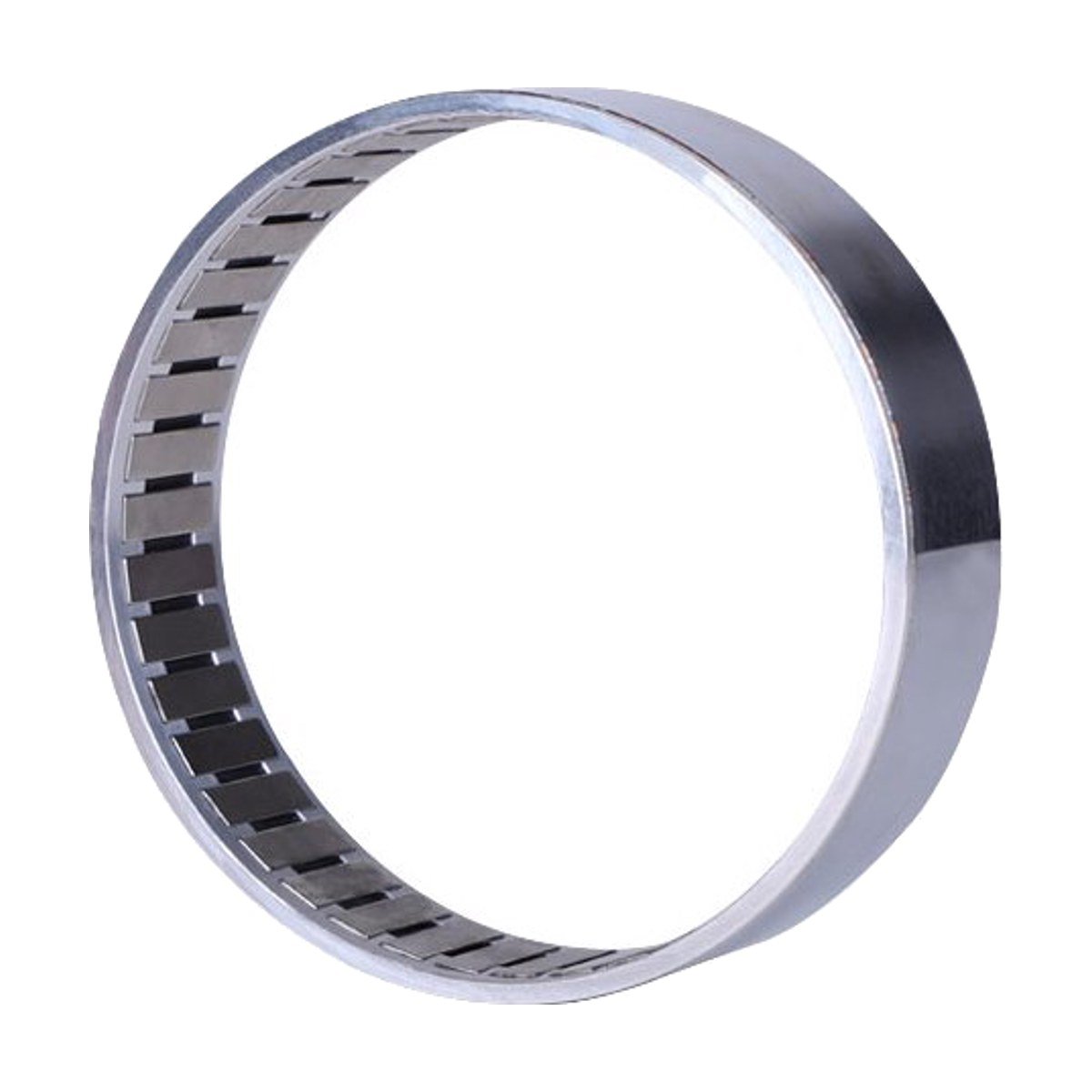

CubeMars RO80 Lite Frameless Torque Motor
$115.90
The entirely redesigned RO Series-RO80，Unveling A New Icon,High Adaptability,Large Hollow
- Freight
- Quoted after order
- Minimum order
- 1 unit
- In the box
- Motor only
4 N·m
Torque (peak / max)
3,600 rpm
Output speed
48 V
Supply voltage
0.352 kg
Weight
Specifications
Performance
- Torque (peak / max)
- 4 N·m
- Torque (rated)
- 1.3 N·m
- Output speed
- 3,600 rpm
- Motion
- Continuous rotary
Mechanical
- Weight
- 0.352 kg
Electrical
- Supply voltage
- 48 V
- KV
- 105 rpm/V
Specifications and photos are the maker's published data. Datasheets are available on request.
Made by
CubeMars
Manufacturer
Typical applications
- Custom joints and actuators
- Camera gimbals and stabilizers
- Direct-drive axes
- Pan-tilt heads
Choosing the right one
- Frameless motors need your own housing, bearings, encoder and driver.
- KV (rpm per volt) sets speed per volt; lower KV gives more torque per amp.
- Inrunners leave a hollow center for cables and shafts; outrunners give more torque for their diameter.
