HighTorque Robotics·HTDW-5036-02-CNE·RJT-049

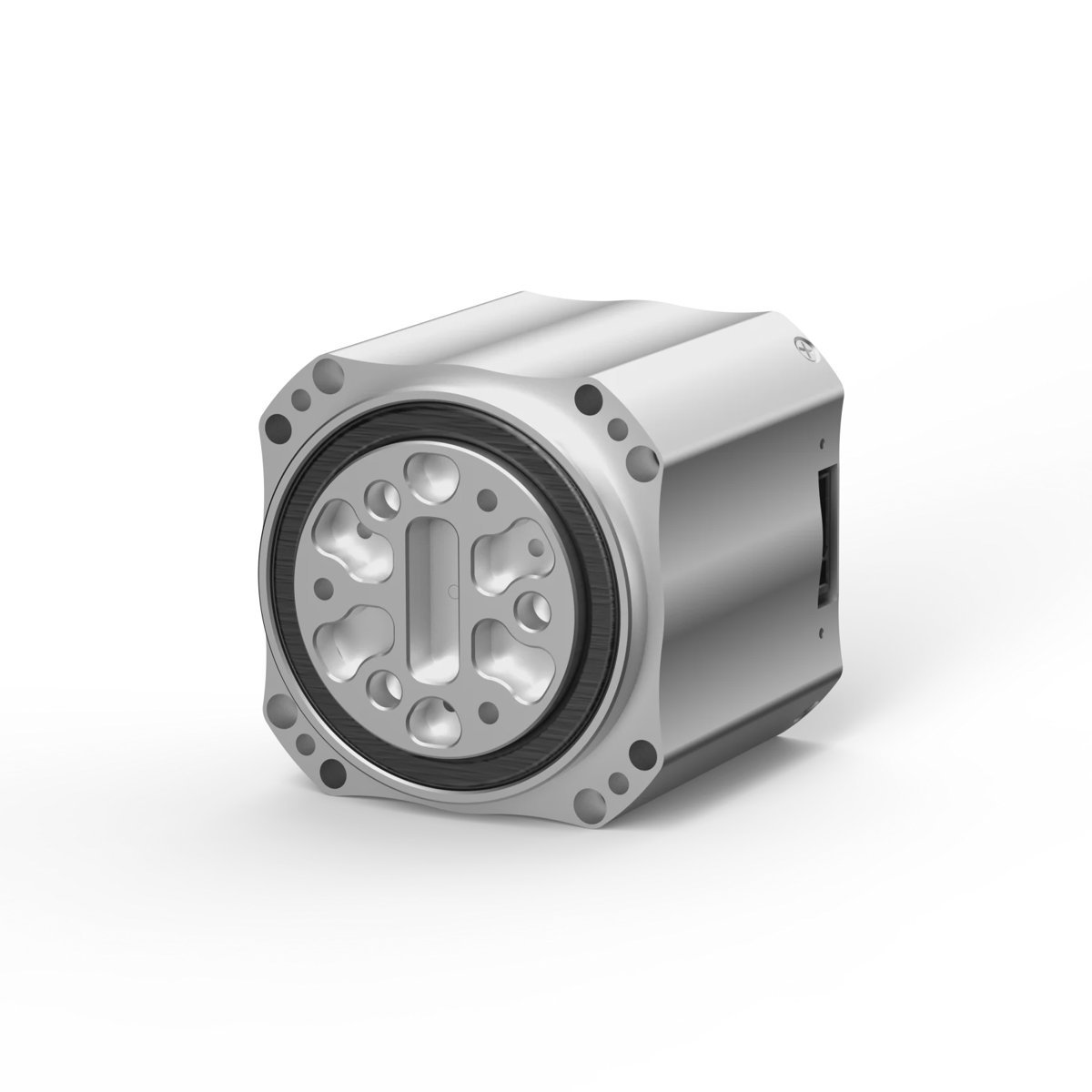

HighTorque HTDW-5036-02-CNE Joint Actuator

$218.90

The HTDW series is an optimized planetary gear reducer, which can achieve high drive efficiency and reverse drive efficiency; a self-designed brushless DC motor with low cogging torque and torque ripple; dual absolute encoders, and can realize current force control (current loop control).

Freight: Quoted after order
Minimum order: 1 unit
In the box: Motor, gearing and driver included

Need volume pricing or a custom configuration? Request a quote →

21 N·m

Torque (peak / max)

6 N·m

Torque (rated)

Gear ratio

Communication

Specifications

Performance

Torque (peak / max): 21 N·m
Torque (rated): 6 N·m
Output speed: 50 rpm
Motion: Continuous rotary

Mechanical

Gear ratio: 36:1
Weight: 0.345 kg

Interface

Communication: CAN

Specifications and photos are the maker's published data. Datasheets are available on request.

Made by

HighTorque Robotics

10 products

Manufacturer

Typical applications

Legged and humanoid robots
Robot arms and cobots
Exoskeletons
Research and education platforms

Choosing the right one

Use peak torque for dynamic moves and rated torque for sustained load; keep continuous load under the rated value.
Low ratios (about 6:1 to 10:1, quasi-direct drive) are backdrivable and suit legged robots; high ratios (30:1 and up) suit arms that need stiffness.
Check bus voltage (24 V or 48 V) and communication (CAN or CAN FD, EtherCAT, RS485) against your controller.
A dual encoder reports absolute output position at power-up, so the joint needs no homing.
Compare torque density (N·m per kg) when weight matters.
