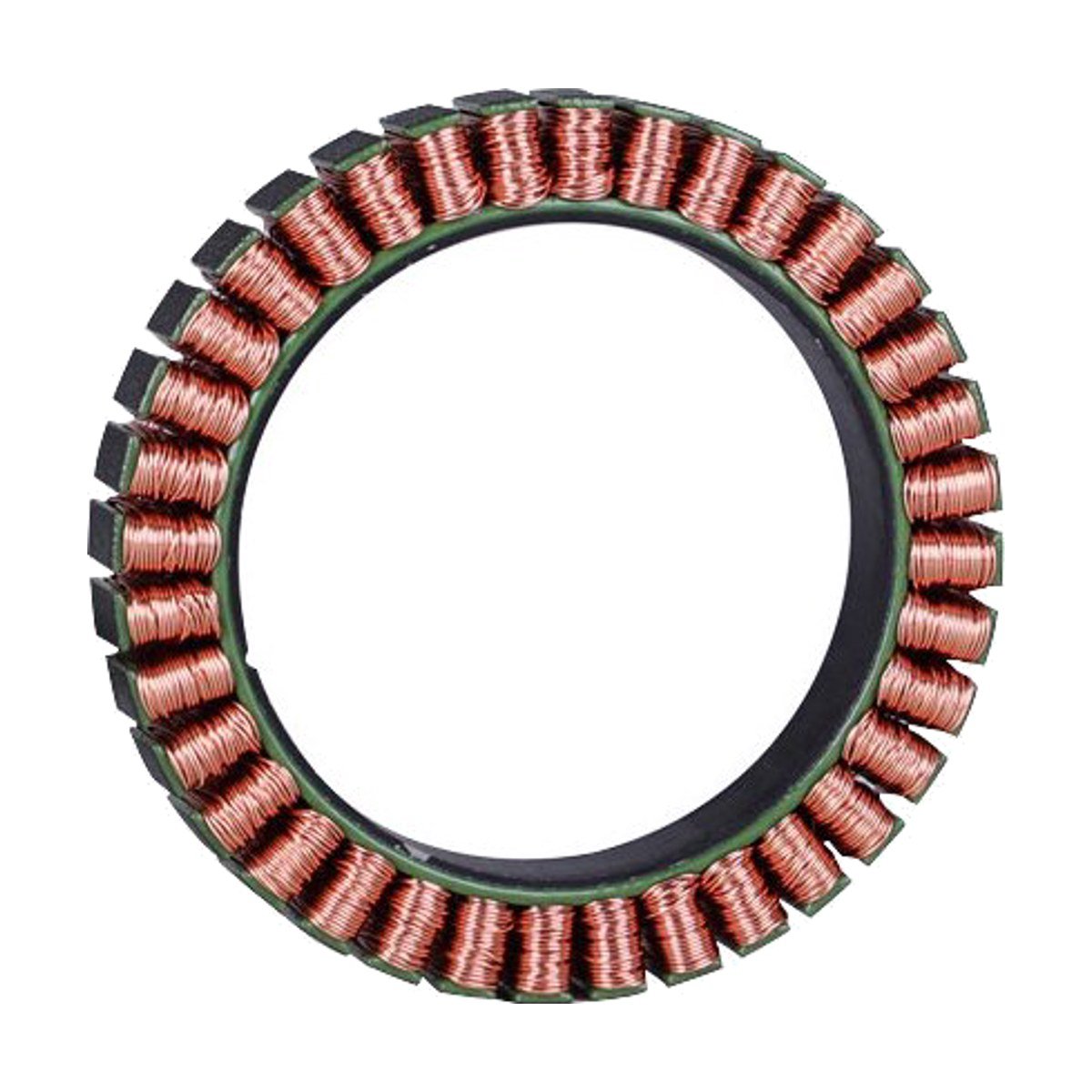

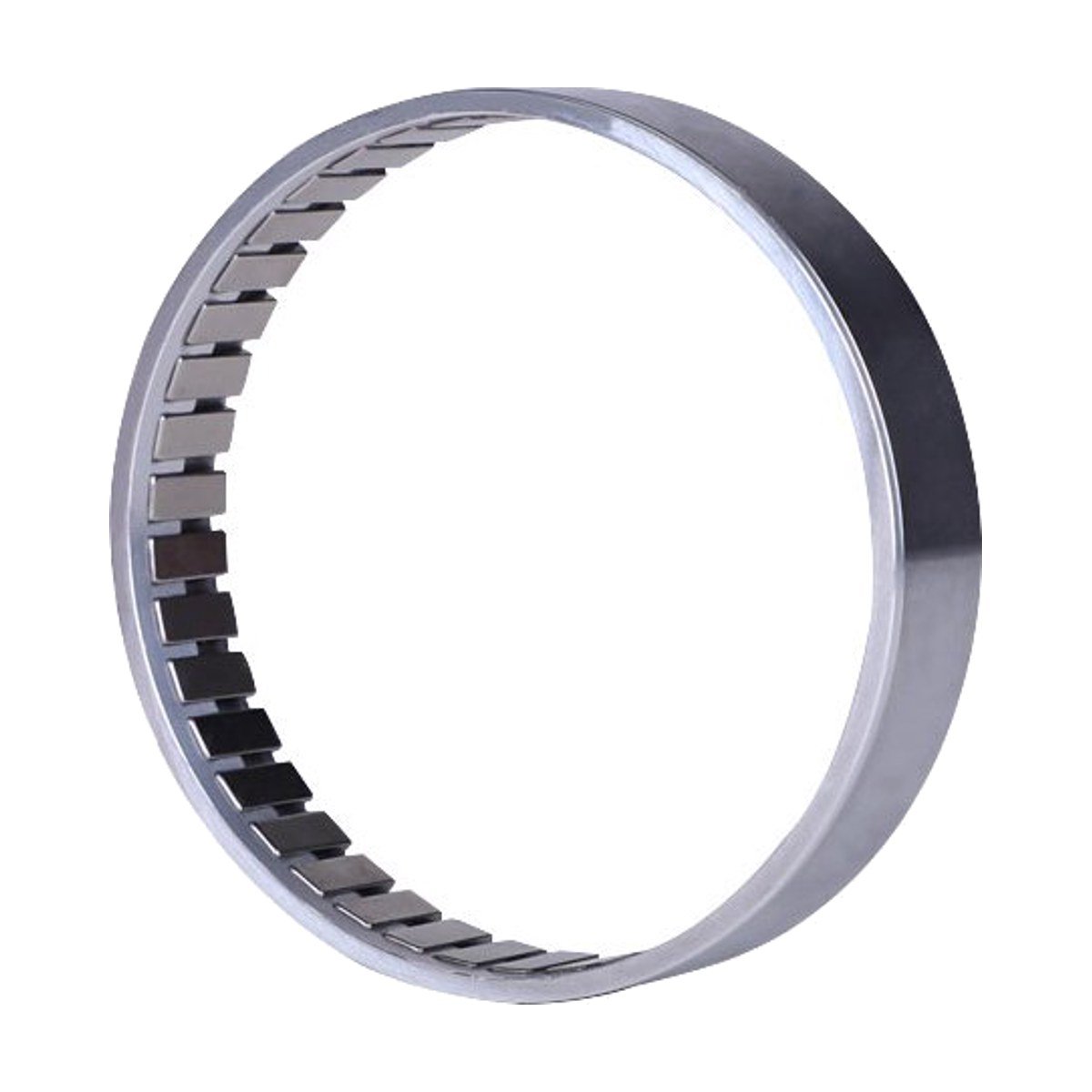

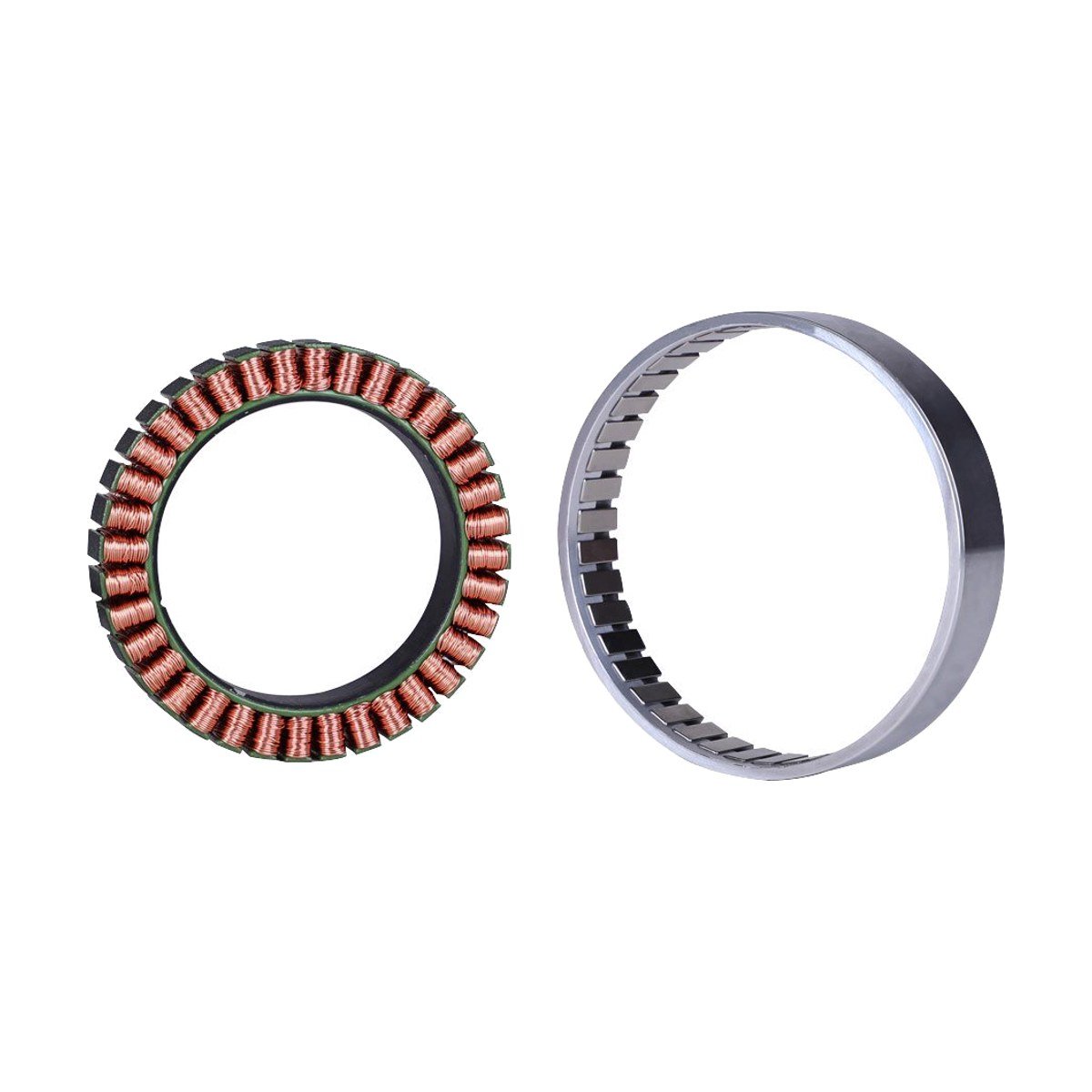

CubeMars RO100 Lite Frameless Torque Motor
CubeMars RO100 Lite Frameless Torque Motor
CubeMars RO100 Lite Frameless Torque Motor
CubeMars·RO100 KV55 Lite Frameless Torque Motor·RMT-030

CubeMars RO100 Lite Frameless Torque Motor

$172.90

The entirely redesigned RO Series-RO100，Unveling A New Icon,High Adaptability,Large Hollow

Freight
Quoted after order
Minimum order
1 unit
In the box
Motor only
Need volume pricing or a custom configuration? Request a quote →
12 N·m
Torque (peak / max)
2,000 rpm
Output speed
48 V
Supply voltage
0.71 kg
Weight

Specifications

Performance

Torque (peak / max)
12 N·m
Torque (rated)
4 N·m
Output speed
2,000 rpm
Motion
Continuous rotary

Mechanical

Weight
0.71 kg

Electrical

Supply voltage
48 V
KV
55 rpm/V

Specifications and photos are the maker's published data. Datasheets are available on request.

Made by

CubeMars
33 products
Manufacturer

Typical applications

  • Custom joints and actuators
  • Camera gimbals and stabilizers
  • Direct-drive axes
  • Pan-tilt heads

Choosing the right one

  • Frameless motors need your own housing, bearings, encoder and driver.
  • KV (rpm per volt) sets speed per volt; lower KV gives more torque per amp.
  • Inrunners leave a hollow center for cables and shafts; outrunners give more torque for their diameter.

About this product

The entirely redesigned RO Series-RO100，Unveling A New Icon,High Adaptability,Large Hollow

  • Series: RO frameless outrunner
  • Factory model: RO100 KV55 Lite Frameless Torque Motor
  • Made by CubeMars
